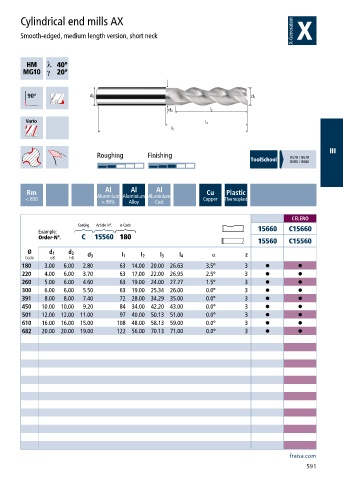

Cylindrical end mills AX

Smooth-edged, medium length version, short neck

h ƍ
a ƍ

III
Roughing Finishing 8578 / 8678
8580 / 8680

Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: 15660 C15660
Order-N°. C 15560 180
15560 C15560
Ø d 1 d 2 α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4
180 3.00 6.00 2.80 63 14.00 20.00 26.63 3.5° 3 • •
220 4.00 6.00 3.70 63 17.00 22.00 26.95 2.5° 3 • •
260 5.00 6.00 4.60 63 19.00 24.00 27.27 1.5° 3 • •
300 6.00 6.00 5.50 63 19.00 25.34 26.00 0.0° 3 • •
391 8.00 8.00 7.40 72 28.00 34.29 35.00 0.0° 3 • •
450 10.00 10.00 9.20 84 34.00 42.20 43.00 0.0° 3 • •
501 12.00 12.00 11.00 97 40.00 50.13 51.00 0.0° 3 • •
610 16.00 16.00 15.00 108 48.00 58.13 59.00 0.0° 3 • •
682 20.00 20.00 19.00 122 56.00 70.13 71.00 0.0° 3 • •
