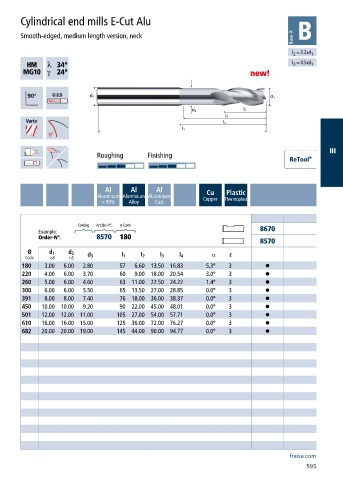

Cylindrical end mills E-Cut Alu

Smooth-edged, medium length version, neck
l = 2.2xd 1
2
34° l = 4.5xd 1
3
24° new!

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 8670
Order-N°. 8570 180
8570
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 α z
Code e8 h5
new 180 3.00 6.00 2.80 57 6.60 13.50 16.83 5.3° 3 •
new 220 4.00 6.00 3.70 60 9.00 18.00 20.54 3.0° 3 •
new 260 5.00 6.00 4.60 63 11.00 22.50 24.22 1.4° 3 •
new 300 6.00 6.00 5.50 65 13.50 27.00 28.85 0.0° 3 •
new 391 8.00 8.00 7.40 76 18.00 36.00 38.37 0.0° 3 •
new 450 10.00 10.00 9.20 90 22.00 45.00 48.01 0.0° 3 •
new 501 12.00 12.00 11.00 105 27.00 54.00 57.71 0.0° 3 •
new 610 16.00 16.00 15.00 125 36.00 72.00 76.27 0.0° 3 •
new 682 20.00 20.00 19.00 145 44.00 90.00 94.77 0.0° 3 •
