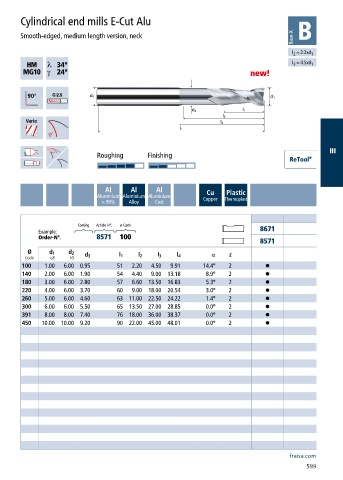

Page 601 - 21-036 APPLITEC catalogue.indb
P. 601
Cylindrical end mills E-Cut Alu
Smooth-edged, medium length version, neck
l = 2.2xd 1
2
34° l = 4.5xd 1
3
24° new!
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8671
Order-N°. 8571 100
8571
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 α z
Code e8 h5
new 100 1.00 6.00 0.95 51 2.20 4.50 9.91 14.4° 2 •
new 140 2.00 6.00 1.90 54 4.40 9.00 13.18 8.9° 2 •
new 180 3.00 6.00 2.80 57 6.60 13.50 16.83 5.3° 2 •
new 220 4.00 6.00 3.70 60 9.00 18.00 20.54 3.0° 2 •
new 260 5.00 6.00 4.60 63 11.00 22.50 24.22 1.4° 2 •
new 300 6.00 6.00 5.50 65 13.50 27.00 28.85 0.0° 2 •
new 391 8.00 8.00 7.40 76 18.00 36.00 38.37 0.0° 2 •
new 450 10.00 10.00 9.20 90 22.00 45.00 48.01 0.0° 2 •
