P. 605

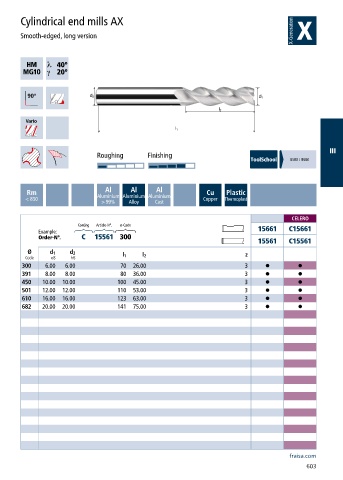

Cylindrical end mills AX
Smooth-edged, long version
h ƍ
a ƍ
III
Roughing Finishing
8580 / 8680
Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: 15661 C15661
Order-N°. C 15561 300
15561 C15561
Ø d 1 d 2 z
Code e8 h6 l 1 l 2
300 6.00 6.00 70 26.00 3 • •
391 8.00 8.00 80 36.00 3 • •
450 10.00 10.00 100 45.00 3 • •
501 12.00 12.00 110 53.00 3 • •
610 16.00 16.00 123 63.00 3 • •
682 20.00 20.00 141 75.00 3 • •
fraisa.com
603
