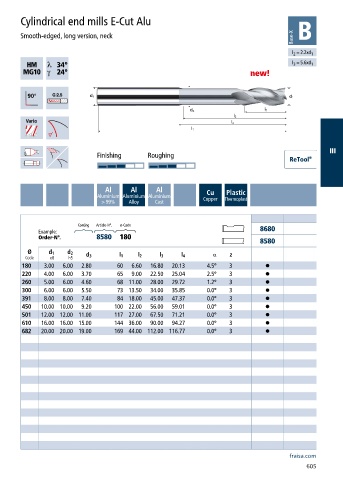

Cylindrical end mills E-Cut Alu
Smooth-edged, long version, neck
l = 2.2xd 1
2
34° l = 5.6xd 1
3
24° new!
III
Finishing Roughing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8680
Order-N°. 8580 180
8580
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 α z
Code e8 h5
new 180 3.00 6.00 2.80 60 6.60 16.80 20.13 4.5° 3 •
new 220 4.00 6.00 3.70 65 9.00 22.50 25.04 2.5° 3 •
new 260 5.00 6.00 4.60 68 11.00 28.00 29.72 1.2° 3 •
new 300 6.00 6.00 5.50 73 13.50 34.00 35.85 0.0° 3 •
new 391 8.00 8.00 7.40 84 18.00 45.00 47.37 0.0° 3 •
new 450 10.00 10.00 9.20 100 22.00 56.00 59.01 0.0° 3 •
new 501 12.00 12.00 11.00 117 27.00 67.50 71.21 0.0° 3 •
new 610 16.00 16.00 15.00 144 36.00 90.00 94.27 0.0° 3 •
new 682 20.00 20.00 19.00 169 44.00 112.00 116.77 0.0° 3 •
