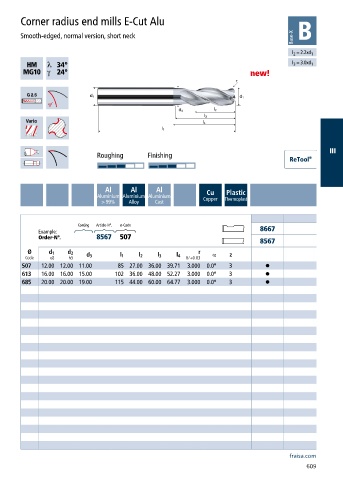

Page 611 - 21-036 APPLITEC catalogue.indb
P. 611
Corner radius end mills E-Cut Alu
Smooth-edged, normal version, short neck
l = 2.2xd 1
2
34° l = 3.0xd 1
3
24° new!
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8667
Order-N°. 8567 507
8567
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 r α z
Code e8 h5 0/+0.03
new 507 12.00 12.00 11.00 85 27.00 36.00 39.71 3.000 0.0° 3 •
new 613 16.00 16.00 15.00 102 36.00 48.00 52.27 3.000 0.0° 3 •
new 685 20.00 20.00 19.00 115 44.00 60.00 64.77 3.000 0.0° 3 •
fraisa.com
609
