P. 613

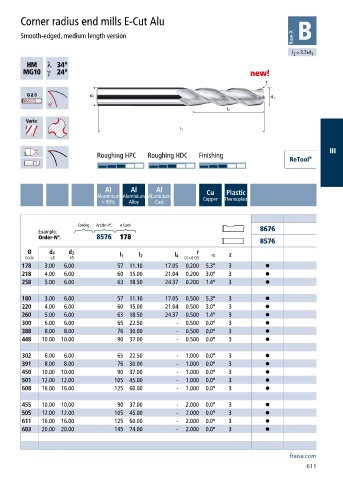

Corner radius end mills E-Cut Alu
Smooth-edged, medium length version
l = 3.7xd 1
2
34°
24° new!
III
Roughing HPC Roughing HDC Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8676
Order-N°. 8576 178
8576
new Ø d 1 d 2 l 1 l 2 l 4 r α z
Code e8 h5 0/+0.03
new 178 3.00 6.00 57 11.10 17.05 0.200 5.3° 3 •
new 218 4.00 6.00 60 15.00 21.04 0.200 3.0° 3 •
new 258 5.00 6.00 63 18.50 24.37 0.200 1.4° 3 •
new 180 3.00 6.00 57 11.10 17.05 0.500 5.3° 3 •
new 220 4.00 6.00 60 15.00 21.04 0.500 3.0° 3 •
new 260 5.00 6.00 63 18.50 24.37 0.500 1.4° 3 •
new 300 6.00 6.00 65 22.50 - 0.500 0.0° 3 •
new 388 8.00 8.00 76 30.00 - 0.500 0.0° 3 •
new 448 10.00 10.00 90 37.00 - 0.500 0.0° 3 •
new 302 6.00 6.00 65 22.50 - 1.000 0.0° 3 •
new 391 8.00 8.00 76 30.00 - 1.000 0.0° 3 •
new 450 10.00 10.00 90 37.00 - 1.000 0.0° 3 •
new 501 12.00 12.00 105 45.00 - 1.000 0.0° 3 •
new 608 16.00 16.00 125 60.00 - 1.000 0.0° 3 •
new 455 10.00 10.00 90 37.00 - 2.000 0.0° 3 •
new 505 12.00 12.00 105 45.00 - 2.000 0.0° 3 •
new 611 16.00 16.00 125 60.00 - 2.000 0.0° 3 •
new 683 20.00 20.00 145 74.00 - 2.000 0.0° 3 •
fraisa.com
611
