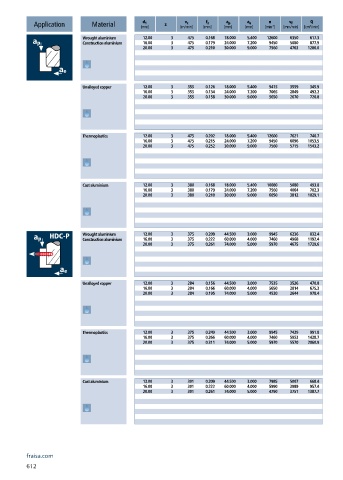

Page 614 - 21-036 APPLITEC catalogue.indb

a p
a e
n
d 1
v c
f z
v f
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min -1 ] [mm/min] [cm 3 /min]
Wrought aluminium 12.00 3 475 0.168 18.000 5.400 12600 6350 617.3
Construction aluminium 16.00 3 475 0.179 24.000 7.200 9450 5080 877.9
20.00 3 475 0.210 30.000 9.000 7560 4763 1286.0
Unalloyed copper 12.00 3 355 0.126 18.000 5.400 9415 3559 345.9
16.00 3 355 0.134 24.000 7.200 7065 2849 492.2
20.00 3 355 0.158 30.000 9.000 5650 2670 720.8

Thermoplastics 12.00 3 475 0.202 18.000 5.400 12600 7621 740.7
16.00 3 475 0.215 24.000 7.200 9450 6096 1053.5
20.00 3 475 0.252 30.000 9.000 7560 5715 1543.2

Cast aluminium 12.00 3 380 0.168 18.000 5.400 10080 5080 493.8
16.00 3 380 0.179 24.000 7.200 7560 4064 702.3
20.00 3 380 0.210 30.000 9.000 6050 3812 1029.1

Wrought aluminium 12.00 3 375 0.209 44.500 3.000 9945 6236 832.4
Construction aluminium 16.00 3 375 0.222 60.000 4.000 7460 4968 1192.4
20.00 3 375 0.261 74.000 5.000 5970 4675 1729.6

Unalloyed copper 12.00 3 284 0.156 44.500 3.000 7535 3526 470.8
16.00 3 284 0.166 60.000 4.000 5650 2814 675.3
20.00 3 284 0.195 74.000 5.000 4520 2644 978.4

Thermoplastics 12.00 3 375 0.249 44.500 3.000 9945 7429 991.8
16.00 3 375 0.266 60.000 4.000 7460 5953 1428.7
20.00 3 375 0.311 74.000 5.000 5970 5570 2060.9

Cast aluminium 12.00 3 301 0.209 44.500 3.000 7985 5007 668.4
16.00 3 301 0.222 60.000 4.000 5990 3989 957.4
20.00 3 301 0.261 74.000 5.000 4790 3751 1387.7

fraisa.com
612
