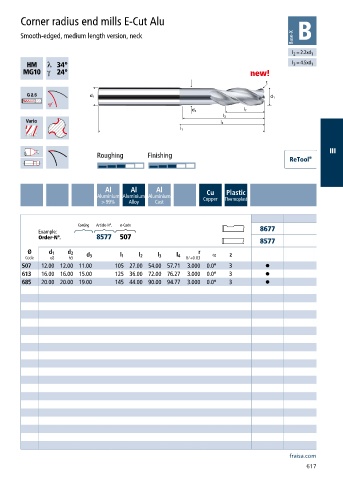

P. 619
Corner radius end mills E-Cut Alu
Smooth-edged, medium length version, neck
l = 2.2xd 1
2
34° l = 4.5xd 1
3
24° new!
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8677
Order-N°. 8577 507
8577
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 r α z
Code e8 h5 0/+0.03
new 507 12.00 12.00 11.00 105 27.00 54.00 57.71 3.000 0.0° 3 •
new 613 16.00 16.00 15.00 125 36.00 72.00 76.27 3.000 0.0° 3 •
new 685 20.00 20.00 19.00 145 44.00 90.00 94.77 3.000 0.0° 3 •
fraisa.com
617
