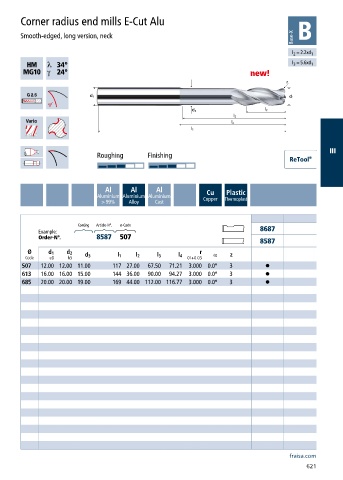

P. 623
Corner radius end mills E-Cut Alu
Smooth-edged, long version, neck
l = 2.2xd 1
2
34° l = 5.6xd 1
3
24° new!
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8687
Order-N°. 8587 507
8587
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 r α z
Code e8 h5 0/+0.03
new 507 12.00 12.00 11.00 117 27.00 67.50 71.21 3.000 0.0° 3 •
new 613 16.00 16.00 15.00 144 36.00 90.00 94.27 3.000 0.0° 3 •
new 685 20.00 20.00 19.00 169 44.00 112.00 116.77 3.000 0.0° 3 •
fraisa.com
621
