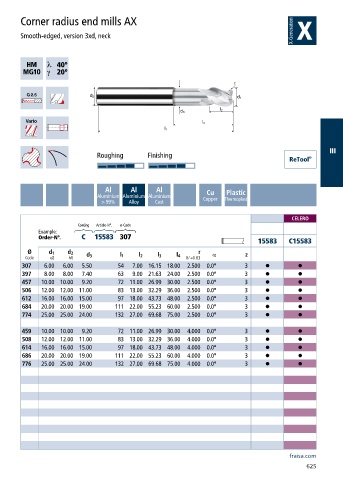

Corner radius end mills AX
Smooth-edged, version 3xd, neck
h ƍ
a ƍ
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
CELERO
Coating Article-N°. ø-Code
Example:
Order-N°. C 15583 307
15583 C15583
Ø d 1 d 2 r α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03
307 6.00 6.00 5.50 54 7.00 16.15 18.00 2.500 0.0° 3 • •
397 8.00 8.00 7.40 63 9.00 21.63 24.00 2.500 0.0° 3 • •
457 10.00 10.00 9.20 72 11.00 26.99 30.00 2.500 0.0° 3 • •
506 12.00 12.00 11.00 83 13.00 32.29 36.00 2.500 0.0° 3 • •
612 16.00 16.00 15.00 97 18.00 43.73 48.00 2.500 0.0° 3 • •
684 20.00 20.00 19.00 111 22.00 55.23 60.00 2.500 0.0° 3 • •
774 25.00 25.00 24.00 132 27.00 69.68 75.00 2.500 0.0° 3 • •
459 10.00 10.00 9.20 72 11.00 26.99 30.00 4.000 0.0° 3 • •
508 12.00 12.00 11.00 83 13.00 32.29 36.00 4.000 0.0° 3 • •
614 16.00 16.00 15.00 97 18.00 43.73 48.00 4.000 0.0° 3 • •
686 20.00 20.00 19.00 111 22.00 55.23 60.00 4.000 0.0° 3 • •
776 25.00 25.00 24.00 132 27.00 69.68 75.00 4.000 0.0° 3 • •
