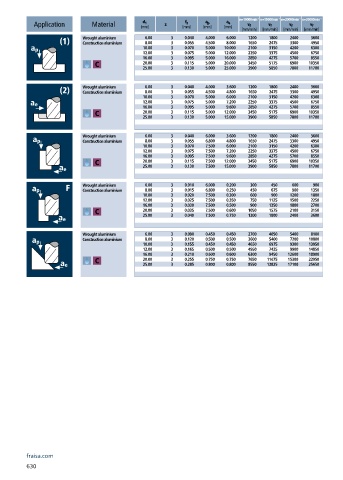

Page 632 - 21-036 APPLITEC catalogue.indb

d 1
a e
f z
a p
Application Material [mm] z [mm] [mm] [mm] n=10000min -1 n=15000min -1 n=20000min -1 n=30000min -1
v f
v f
v f
v f
[mm/min] [mm/min] [mm/min] [mm/min]
Wrought aluminium 6.00 3 0.040 4.000 6.000 1200 1800 2400 3600
Construction aluminium 8.00 3 0.055 4.500 8.000 1650 2475 3300 4950
10.00 3 0.070 5.000 10.000 2100 3150 4200 6300
12.00 3 0.075 5.000 12.000 2250 3375 4500 6750
16.00 3 0.095 5.000 16.000 2850 4275 5700 8550
20.00 3 0.115 5.000 20.000 3450 5175 6900 10350
25.00 3 0.130 5.000 25.000 3900 5850 7800 11700
Wrought aluminium 6.00 3 0.040 4.000 3.600 1200 1800 2400 3600
Construction aluminium 8.00 3 0.055 4.500 4.800 1650 2475 3300 4950
10.00 3 0.070 5.000 6.000 2100 3150 4200 6300
12.00 3 0.075 5.000 7.200 2250 3375 4500 6750
16.00 3 0.095 5.000 9.600 2850 4275 5700 8550
20.00 3 0.115 5.000 12.000 3450 5175 6900 10350
25.00 3 0.130 5.000 15.000 3900 5850 7800 11700
Wrought aluminium 6.00 3 0.040 6.000 3.600 1200 1800 2400 3600
Construction aluminium 8.00 3 0.055 6.800 4.800 1650 2475 3300 4950
10.00 3 0.070 7.500 6.000 2100 3150 4200 6300
12.00 3 0.075 7.500 7.200 2250 3375 4500 6750
16.00 3 0.095 7.500 9.600 2850 4275 5700 8550
20.00 3 0.115 7.500 12.000 3450 5175 6900 10350
25.00 3 0.130 7.500 15.000 3900 5850 7800 11700
Wrought aluminium 6.00 3 0.010 6.000 0.200 300 450 600 900
Construction aluminium 8.00 3 0.015 6.800 0.250 450 675 900 1350
10.00 3 0.020 7.500 0.300 600 900 1200 1800
12.00 3 0.025 7.500 0.350 750 1125 1500 2250
16.00 3 0.030 7.500 0.500 900 1350 1800 2700
20.00 3 0.035 7.500 0.600 1050 1575 2100 3150
25.00 3 0.040 7.500 0.750 1200 1800 2400 3600
Wrought aluminium 6.00 3 0.090 0.450 0.450 2700 4050 5400 8100
Construction aluminium 8.00 3 0.120 0.500 0.500 3600 5400 7200 10800
10.00 3 0.155 0.450 0.450 4650 6975 9300 13950
12.00 3 0.165 0.500 0.500 4950 7425 9900 14850
16.00 3 0.210 0.600 0.600 6300 9450 12600 18900
20.00 3 0.255 0.750 0.750 7650 11475 15300 22950
25.00 3 0.285 0.800 0.800 8550 12825 17100 25650
