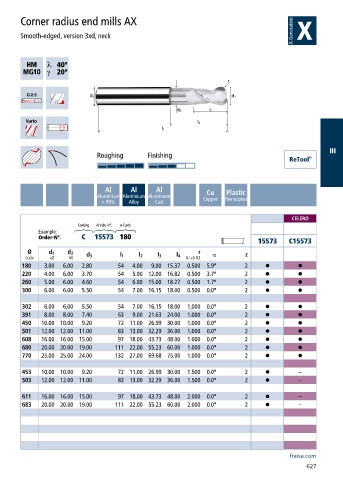

Corner radius end mills AX

Smooth-edged, version 3xd, neck

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

CELERO
Coating Article-N°. ø-Code
Example:
Order-N°. C 15573 180
15573 C15573
Ø d 1 d 2 r α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03
180 3.00 6.00 2.80 54 4.00 9.00 15.37 0.500 5.9° 2 • •
220 4.00 6.00 3.70 54 5.00 12.00 16.82 0.500 3.7° 2 • •
260 5.00 6.00 4.60 54 6.00 15.00 18.27 0.500 1.7° 2 • •
300 6.00 6.00 5.50 54 7.00 16.15 18.00 0.500 0.0° 2 • •
302 6.00 6.00 5.50 54 7.00 16.15 18.00 1.000 0.0° 2 • •
391 8.00 8.00 7.40 63 9.00 21.63 24.00 1.000 0.0° 2 • •
450 10.00 10.00 9.20 72 11.00 26.99 30.00 1.000 0.0° 2 • •
501 12.00 12.00 11.00 83 13.00 32.29 36.00 1.000 0.0° 2 • •
608 16.00 16.00 15.00 97 18.00 43.73 48.00 1.000 0.0° 2 • •
680 20.00 20.00 19.00 111 22.00 55.23 60.00 1.000 0.0° 2 • •
770 25.00 25.00 24.00 132 27.00 69.68 75.00 1.000 0.0° 2 • •

453 10.00 10.00 9.20 72 11.00 26.99 30.00 1.500 0.0° 2 • –
503 12.00 12.00 11.00 83 13.00 32.29 36.00 1.500 0.0° 2 • –

611 16.00 16.00 15.00 97 18.00 43.73 48.00 2.000 0.0° 2 • –
683 20.00 20.00 19.00 111 22.00 55.23 60.00 2.000 0.0° 2 • –
