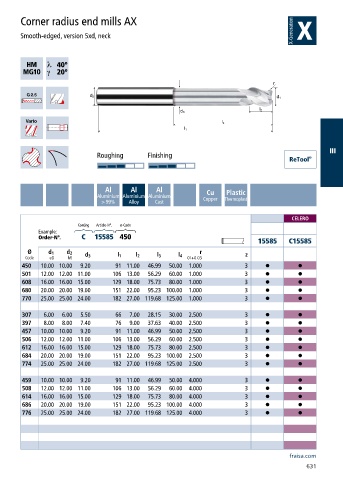

Corner radius end mills AX

Smooth-edged, version 5xd, neck

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

CELERO
Coating Article-N°. ø-Code
Example:
Order-N°. C 15585 450
15585 C15585
Ø d 1 d 2 r z
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03
450 10.00 10.00 9.20 91 11.00 46.99 50.00 1.000 3 • •
501 12.00 12.00 11.00 106 13.00 56.29 60.00 1.000 3 • •
608 16.00 16.00 15.00 129 18.00 75.73 80.00 1.000 3 • •
680 20.00 20.00 19.00 151 22.00 95.23 100.00 1.000 3 • •
770 25.00 25.00 24.00 182 27.00 119.68 125.00 1.000 3 • •

307 6.00 6.00 5.50 66 7.00 28.15 30.00 2.500 3 • •
397 8.00 8.00 7.40 76 9.00 37.63 40.00 2.500 3 • •
457 10.00 10.00 9.20 91 11.00 46.99 50.00 2.500 3 • •
506 12.00 12.00 11.00 106 13.00 56.29 60.00 2.500 3 • •
612 16.00 16.00 15.00 129 18.00 75.73 80.00 2.500 3 • •
684 20.00 20.00 19.00 151 22.00 95.23 100.00 2.500 3 • •
774 25.00 25.00 24.00 182 27.00 119.68 125.00 2.500 3 • •

459 10.00 10.00 9.20 91 11.00 46.99 50.00 4.000 3 • •
508 12.00 12.00 11.00 106 13.00 56.29 60.00 4.000 3 • •
614 16.00 16.00 15.00 129 18.00 75.73 80.00 4.000 3 • •
686 20.00 20.00 19.00 151 22.00 95.23 100.00 4.000 3 • •
776 25.00 25.00 24.00 182 27.00 119.68 125.00 4.000 3 • •
