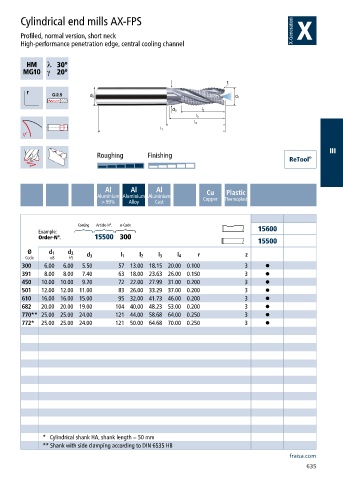

Cylindrical end mills AX-FPS

Profiled, normal version, short neck
High-performance penetration edge, central cooling channel

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 15600
Order-N°. 15500 300
15500
Ø d 1 d 2 r z
Code e8 h5 d 3 l 1 l 2 l 3 l 4
300 6.00 6.00 5.50 57 13.00 18.15 20.00 0.100 3 •
391 8.00 8.00 7.40 63 18.00 23.63 26.00 0.150 3 •
450 10.00 10.00 9.20 72 22.00 27.99 31.00 0.200 3 •
501 12.00 12.00 11.00 83 26.00 33.29 37.00 0.200 3 •
610 16.00 16.00 15.00 95 32.00 41.73 46.00 0.200 3 •
682 20.00 20.00 19.00 104 40.00 48.23 53.00 0.200 3 •
770** 25.00 25.00 24.00 121 44.00 58.68 64.00 0.250 3 •
772* 25.00 25.00 24.00 121 50.00 64.68 70.00 0.250 3 •

* Cylindrical shank HA, shank length = 50 mm
** Shank with side clamping according to DIN 6535 HB
