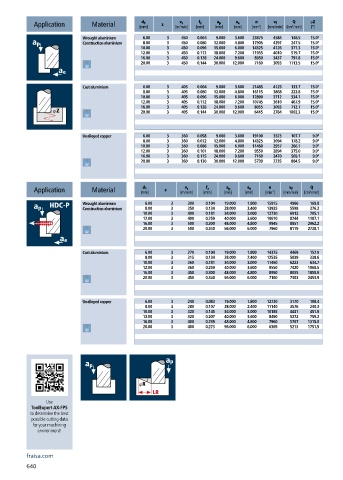

Page 642 - 21-036 APPLITEC catalogue.indb

a p
a e
n
v c
d 1
f z
Q
v f
Application Material [mm] z [m/min] [mm] [mm] [mm] [min -1 ] [mm/min] [cm 3 /min] jZ
[°]
Wrought aluminium 6.00 3 450 0.064 9.000 3.600 23875 4584 148.5 15.0°
Construction aluminium 8.00 3 450 0.080 12.000 4.800 17905 4297 247.5 15.0°
10.00 3 450 0.096 15.000 6.000 14325 4126 371.3 15.0°
12.00 3 450 0.112 18.000 7.200 11935 4010 519.7 15.0°
16.00 3 450 0.128 24.000 9.600 8950 3437 791.8 15.0°
20.00 3 450 0.144 30.000 12.000 7160 3093 1113.5 15.0°
Cast aluminium 6.00 3 405 0.064 9.000 3.600 21485 4125 133.7 15.0°
8.00 3 405 0.080 12.000 4.800 16115 3868 222.8 15.0°
10.00 3 405 0.096 15.000 6.000 12890 3712 334.1 15.0°
12.00 3 405 0.112 18.000 7.200 10745 3610 467.9 15.0°
16.00 3 405 0.128 24.000 9.600 8055 3093 712.7 15.0°
20.00 3 405 0.144 30.000 12.000 6445 2784 1002.3 15.0°
Unalloyed copper 6.00 3 360 0.058 9.000 3.600 19100 3323 107.7 9.0°
8.00 3 360 0.072 12.000 4.800 14325 3094 178.2 9.0°
10.00 3 360 0.086 15.000 6.000 11460 2957 266.1 9.0°
12.00 3 360 0.101 18.000 7.200 9550 2894 375.0 9.0°
16.00 3 360 0.115 24.000 9.600 7160 2470 569.1 9.0°
20.00 3 360 0.130 30.000 12.000 5730 2235 804.5 9.0°
v f
a e
n
v c
f z
a p
Q
d 1
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Wrought aluminium 6.00 3 300 0.104 19.000 1.800 15915 4966 169.8
Construction aluminium 8.00 3 350 0.134 28.000 2.400 13925 5598 376.2
10.00 3 400 0.181 34.000 3.000 12730 6912 705.1
12.00 3 400 0.259 40.000 3.600 10610 8244 1187.1
16.00 3 500 0.300 48.000 4.800 9945 8951 2062.2
20.00 3 500 0.340 56.000 6.000 7960 8119 2728.1
Cast aluminium 6.00 3 270 0.104 19.000 1.800 14325 4469 152.9
8.00 3 315 0.134 28.000 2.400 12535 5039 338.6
10.00 3 360 0.181 34.000 3.000 11460 6223 634.7
12.00 3 360 0.259 40.000 3.600 9550 7420 1068.5
16.00 3 450 0.300 48.000 4.800 8950 8055 1855.9
20.00 3 450 0.340 56.000 6.000 7160 7303 2453.9
Unalloyed copper 6.00 3 240 0.083 19.000 1.800 12730 3170 108.4
8.00 3 280 0.107 28.000 2.400 11140 3576 240.3
10.00 3 320 0.145 34.000 3.000 10185 4431 451.9
12.00 3 320 0.207 40.000 3.600 8490 5272 759.2
16.00 3 400 0.239 48.000 4.800 7960 5707 1315.0
20.00 3 400 0.273 56.000 6.000 6365 5213 1751.5
