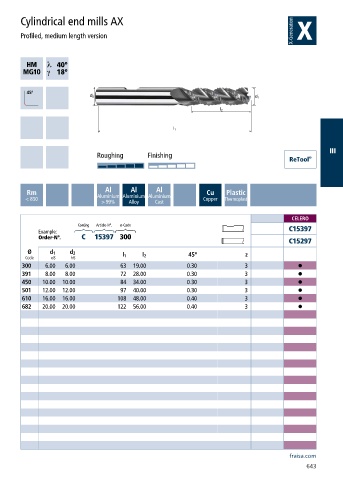

Cylindrical end mills AX
Profiled, medium length version
h ƍ
a ƍ
III
Roughing Finishing
Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: C15397
Order-N°. C 15397 300
C15297
Ø d 1 d 2 45° z
Code e8 h6 l 1 l 2
300 6.00 6.00 63 19.00 0.30 3 •
391 8.00 8.00 72 28.00 0.30 3 •
450 10.00 10.00 84 34.00 0.30 3 •
501 12.00 12.00 97 40.00 0.30 3 •
610 16.00 16.00 108 48.00 0.40 3 •
682 20.00 20.00 122 56.00 0.40 3 •
