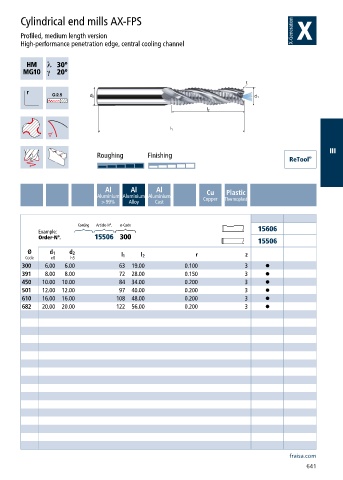

Cylindrical end mills AX-FPS

Profiled, medium length version
High-performance penetration edge, central cooling channel

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 15606
Order-N°. 15506 300
15506
Ø d 1 d 2 r z
Code e8 h5 l 1 l 2
300 6.00 6.00 63 19.00 0.100 3 •
391 8.00 8.00 72 28.00 0.150 3 •
450 10.00 10.00 84 34.00 0.200 3 •
501 12.00 12.00 97 40.00 0.200 3 •
610 16.00 16.00 108 48.00 0.200 3 •
682 20.00 20.00 122 56.00 0.200 3 •
