P. 647

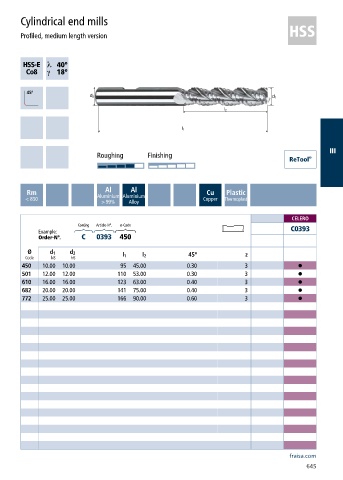

Cylindrical end mills
Profiled, medium length version
h ƍ
a ƍ
III
Roughing Finishing
Al
Al
Rm Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy
CELERO
Coating Article-N°. ø-Code
Example: C0393
Order-N°. C 0393 450
Ø d 1 d 2 45° z
Code k8 h6 l 1 l 2
450 10.00 10.00 95 45.00 0.30 3 •
501 12.00 12.00 110 53.00 0.30 3 •
610 16.00 16.00 123 63.00 0.40 3 •
682 20.00 20.00 141 75.00 0.40 3 •
772 25.00 25.00 166 90.00 0.60 3 •
fraisa.com
645
