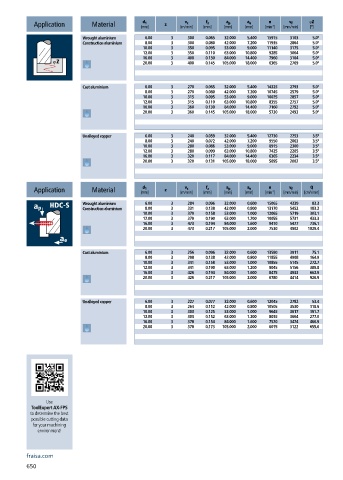

Page 652 - 21-036 APPLITEC catalogue.indb

f z
a p
d 1
v c
v f
n
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min -1 ] [mm/min] jZ
[°]
Wrought aluminium 6.00 3 300 0.065 32.000 5.400 15915 3103 5.0°
Construction aluminium 8.00 3 300 0.080 42.000 7.200 11935 2864 5.0°
10.00 3 350 0.095 53.000 9.000 11140 3175 5.0°
12.00 3 350 0.110 63.000 10.800 9285 3064 5.0°
16.00 3 400 0.130 84.000 14.400 7960 3104 5.0°
20.00 3 400 0.145 105.000 18.000 6365 2769 5.0°
Cast aluminium 6.00 3 270 0.065 32.000 5.400 14325 2793 5.0°
8.00 3 270 0.080 42.000 7.200 10745 2579 5.0°
10.00 3 315 0.095 53.000 9.000 10025 2857 5.0°
12.00 3 315 0.110 63.000 10.800 8355 2757 5.0°
16.00 3 360 0.130 84.000 14.400 7160 2792 5.0°
20.00 3 360 0.145 105.000 18.000 5730 2493 5.0°
Unalloyed copper 6.00 3 240 0.059 32.000 5.400 12730 2253 3.5°
8.00 3 240 0.072 42.000 7.200 9550 2063 3.5°
10.00 3 280 0.086 53.000 9.000 8915 2300 3.5°
12.00 3 280 0.099 63.000 10.800 7425 2205 3.5°
16.00 3 320 0.117 84.000 14.400 6365 2234 3.5°
20.00 3 320 0.131 105.000 18.000 5095 2002 3.5°

f z
n
a e
a p
v f
d 1
v c
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Wrought aluminium 6.00 3 284 0.096 32.000 0.600 15065 4339 83.3
Construction aluminium 8.00 3 331 0.138 42.000 0.800 13170 5452 183.2
10.00 3 379 0.158 53.000 1.000 12065 5719 303.1
12.00 3 379 0.190 63.000 1.200 10055 5731 433.3
16.00 3 473 0.194 84.000 1.600 9410 5477 736.1
20.00 3 473 0.217 105.000 2.000 7530 4902 1029.4
Cast aluminium 6.00 3 256 0.096 32.000 0.600 13580 3911 75.1
8.00 3 298 0.138 42.000 0.800 11855 4908 164.9
10.00 3 341 0.158 53.000 1.000 10855 5145 272.7
12.00 3 341 0.190 63.000 1.200 9045 5156 389.8
16.00 3 426 0.194 84.000 1.600 8475 4933 662.9
20.00 3 426 0.217 105.000 2.000 6780 4414 926.9
Unalloyed copper 6.00 3 227 0.077 32.000 0.600 12045 2782 53.4
8.00 3 264 0.112 42.000 0.800 10505 3530 118.6
10.00 3 303 0.125 53.000 1.000 9645 3617 191.7
12.00 3 303 0.152 63.000 1.200 8035 3664 277.0
16.00 3 378 0.154 84.000 1.600 7520 3474 466.9
20.00 3 378 0.173 105.000 2.000 6015 3122 655.6

Use
ToolExpert AX-FPS
to determine the best
possible cutting data
for your machining
environment!

fraisa.com
650
