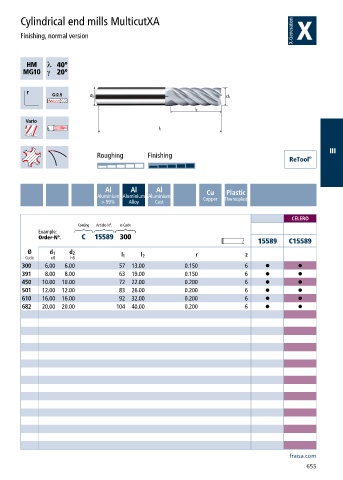

Cylindrical end mills MulticutXA
Finishing, normal version
h ƍ
a ƍ
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
CELERO
Coating Article-N°. ø-Code
Example:
Order-N°. C 15589 300
15589 C15589
Ø d 1 d 2 r z
Code e8 h6 l 1 l 2
300 6.00 6.00 57 13.00 0.150 6 • •
391 8.00 8.00 63 19.00 0.150 6 • •
450 10.00 10.00 72 22.00 0.200 6 • •
501 12.00 12.00 83 26.00 0.200 6 • •
610 16.00 16.00 92 32.00 0.200 6 • •
682 20.00 20.00 104 40.00 0.200 6 • •
