P. 661

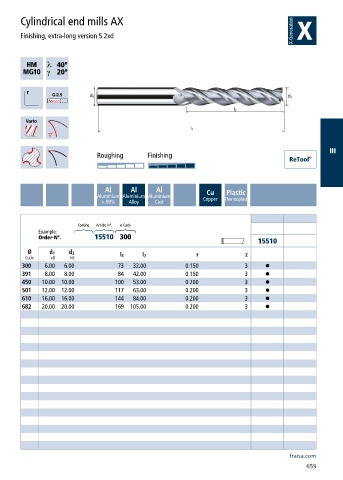

Cylindrical end mills AX
Finishing, extra-long version 5.2xd
h ƍ
a ƍ
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example:
Order-N°. 15510 300
15510
Ø d 1 d 2 r z
Code e8 h6 l 1 l 2
300 6.00 6.00 73 32.00 0.150 3 •
391 8.00 8.00 84 42.00 0.150 3 •
450 10.00 10.00 100 53.00 0.200 3 •
501 12.00 12.00 117 63.00 0.200 3 •
610 16.00 16.00 144 84.00 0.200 3 •
682 20.00 20.00 169 105.00 0.200 3 •
fraisa.com
659
