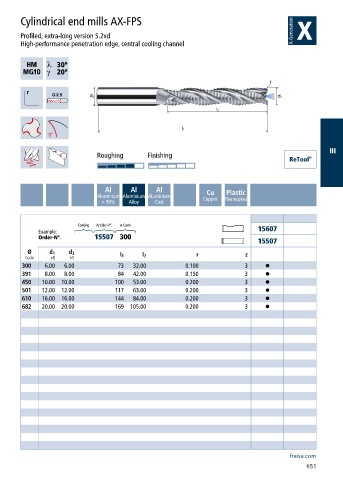

Cylindrical end mills AX-FPS

Profiled, extra-long version 5.2xd
High-performance penetration edge, central cooling channel

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 15607
Order-N°. 15507 300
15507
Ø d 1 d 2 r z
Code e8 h5 l 1 l 2
300 6.00 6.00 73 32.00 0.100 3 •
391 8.00 8.00 84 42.00 0.150 3 •
450 10.00 10.00 100 53.00 0.200 3 •
501 12.00 12.00 117 63.00 0.200 3 •
610 16.00 16.00 144 84.00 0.200 3 •
682 20.00 20.00 169 105.00 0.200 3 •

fraisa.com
651
