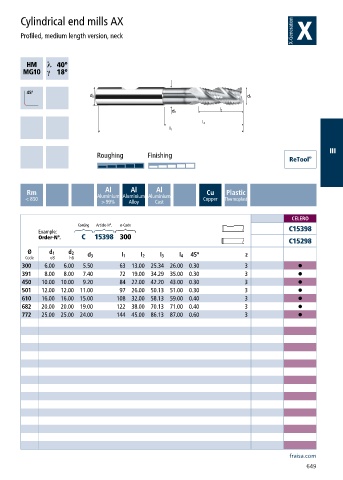

Cylindrical end mills AX
Profiled, medium length version, neck
h ƍ
a ƍ
III
Roughing Finishing
Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: C15398
Order-N°. C 15398 300
C15298
Ø d 1 d 2 45° z
Code e8 h6 d 3 l 1 l 2 l 3 l 4
300 6.00 6.00 5.50 63 13.00 25.34 26.00 0.30 3 •
391 8.00 8.00 7.40 72 19.00 34.29 35.00 0.30 3 •
450 10.00 10.00 9.20 84 22.00 42.20 43.00 0.30 3 •
501 12.00 12.00 11.00 97 26.00 50.13 51.00 0.30 3 •
610 16.00 16.00 15.00 108 32.00 58.13 59.00 0.40 3 •
682 20.00 20.00 19.00 122 38.00 70.13 71.00 0.40 3 •
772 25.00 25.00 24.00 144 45.00 86.13 87.00 0.60 3 •
