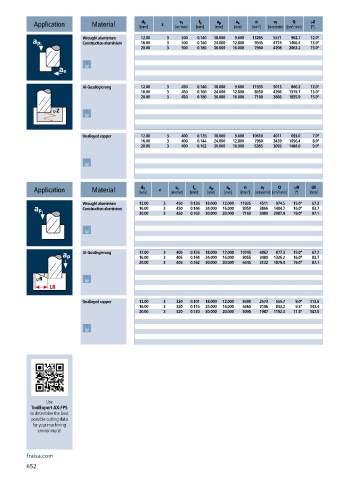

Page 654 - 21-036 APPLITEC catalogue.indb

a p
a e
f z
v c
Q
d 1
n
v f
Application Material [mm] z [m/min] [mm] [mm] [mm] [min -1 ] [mm/min] [cm 3 /min] jZ
[°]
Wrought aluminium 12.00 3 500 0.140 18.000 9.600 13265 5571 962.7 12.0°
Construction aluminium 16.00 3 500 0.160 24.000 12.800 9945 4774 1466.4 13.0°
20.00 3 500 0.180 30.000 16.000 7960 4298 2063.2 15.0°
Al-Gusslegierung 12.00 3 450 0.140 18.000 9.600 11935 5013 866.2 12.0°
16.00 3 450 0.160 24.000 12.800 8950 4296 1319.7 13.0°
20.00 3 450 0.180 30.000 16.000 7160 3866 1855.9 15.0°

Unalloyed copper 12.00 3 400 0.126 18.000 9.600 10610 4011 693.0 7.0°
16.00 3 400 0.144 24.000 12.800 7960 3439 1056.4 8.0°
20.00 3 400 0.162 30.000 16.000 6365 3093 1484.8 9.0°

v c
f z
v f
Q
LR
a p
a e
n
d 1
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
[°]
-1
3
Wrought aluminium 12.00 3 450 0.126 18.000 12.000 11935 4511 974.5 15.0° 67.2
Construction aluminium 16.00 3 450 0.144 24.000 16.000 8950 3866 1484.7 16.0° 83.7
20.00 3 450 0.162 30.000 20.000 7160 3480 2087.9 19.0° 87.1
Al-Gusslegierung 12.00 3 405 0.126 18.000 12.000 10745 4062 877.3 15.0° 67.2
16.00 3 405 0.144 24.000 16.000 8055 3480 1336.2 16.0° 83.7
20.00 3 405 0.162 30.000 20.000 6445 3132 1879.4 19.0° 87.1
Unalloyed copper 12.00 3 320 0.101 18.000 12.000 8490 2573 555.7 9.0° 113.6
16.00 3 320 0.115 24.000 16.000 6365 2196 843.2 9.5° 143.4
20.00 3 320 0.130 30.000 20.000 5095 1987 1192.3 11.5° 147.5

Use
ToolExpert AX-FPS
to determine the best
possible cutting data
for your machining
environment!

fraisa.com
652
