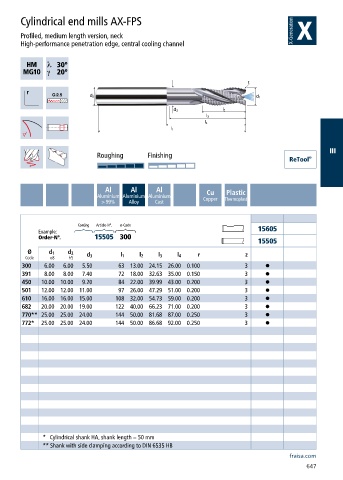

Cylindrical end mills AX-FPS

Profiled, medium length version, neck
High-performance penetration edge, central cooling channel

h ƍ
a ƍ

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 15605
Order-N°. 15505 300
15505
Ø d 1 d 2 r z
Code e8 h5 d 3 l 1 l 2 l 3 l 4
300 6.00 6.00 5.50 63 13.00 24.15 26.00 0.100 3 •
391 8.00 8.00 7.40 72 18.00 32.63 35.00 0.150 3 •
450 10.00 10.00 9.20 84 22.00 39.99 43.00 0.200 3 •
501 12.00 12.00 11.00 97 26.00 47.29 51.00 0.200 3 •
610 16.00 16.00 15.00 108 32.00 54.73 59.00 0.200 3 •
682 20.00 20.00 19.00 122 40.00 66.23 71.00 0.200 3 •
770** 25.00 25.00 24.00 144 50.00 81.68 87.00 0.250 3 •
772* 25.00 25.00 24.00 144 50.00 86.68 92.00 0.250 3 •

* Cylindrical shank HA, shank length = 50 mm
** Shank with side clamping according to DIN 6535 HB
