P. 641

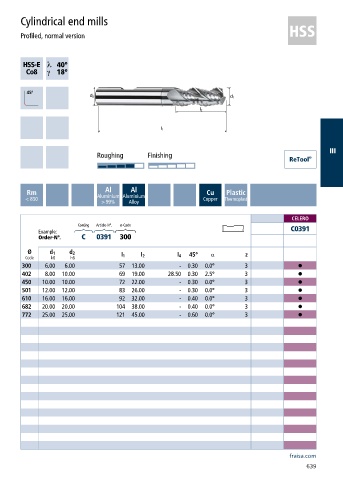

Cylindrical end mills
Profiled, normal version
h ƍ
a ƍ
III
Roughing Finishing
Al
Al
Rm Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy
CELERO
Coating Article-N°. ø-Code
Example: C0391
Order-N°. C 0391 300
Ø d 1 d 2 45° α z
Code k8 h6 l 1 l 2 l 4
300 6.00 6.00 57 13.00 - 0.30 0.0° 3 •
402 8.00 10.00 69 19.00 28.50 0.30 2.5° 3 •
450 10.00 10.00 72 22.00 - 0.30 0.0° 3 •
501 12.00 12.00 83 26.00 - 0.30 0.0° 3 •
610 16.00 16.00 92 32.00 - 0.40 0.0° 3 •
682 20.00 20.00 104 38.00 - 0.40 0.0° 3 •
772 25.00 25.00 121 45.00 - 0.60 0.0° 3 •
fraisa.com
639
