P. 639

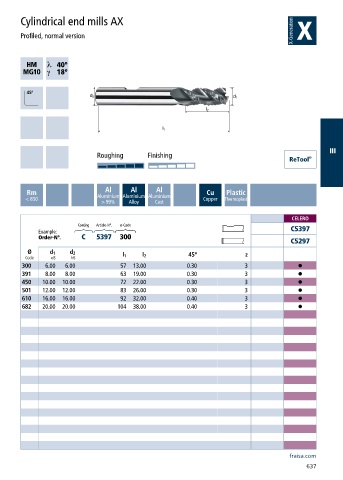

Cylindrical end mills AX
Profiled, normal version
h ƍ
a ƍ
III
Roughing Finishing
Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: C5397
Order-N°. C 5397 300
C5297
Ø d 1 d 2 45° z
Code e8 h6 l 1 l 2
300 6.00 6.00 57 13.00 0.30 3 •
391 8.00 8.00 63 19.00 0.30 3 •
450 10.00 10.00 72 22.00 0.30 3 •
501 12.00 12.00 83 26.00 0.30 3 •
610 16.00 16.00 92 32.00 0.40 3 •
682 20.00 20.00 104 38.00 0.40 3 •
fraisa.com
637
