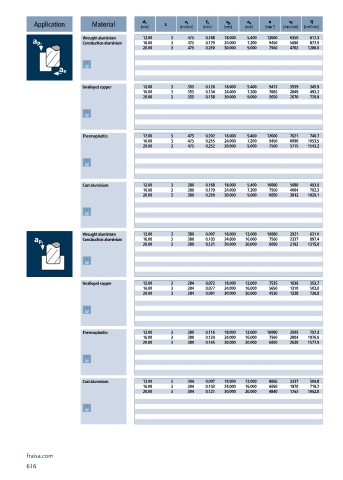

Page 618 - 21-036 APPLITEC catalogue.indb

a p
a e
n
d 1
v c
f z
v f
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min -1 ] [mm/min] [cm 3 /min]
Wrought aluminium 12.00 3 475 0.168 18.000 5.400 12600 6350 617.3
Construction aluminium 16.00 3 475 0.179 24.000 7.200 9450 5080 877.9
20.00 3 475 0.210 30.000 9.000 7560 4763 1286.0
Unalloyed copper 12.00 3 355 0.126 18.000 5.400 9415 3559 345.9
16.00 3 355 0.134 24.000 7.200 7065 2849 492.2
20.00 3 355 0.158 30.000 9.000 5650 2670 720.8

Thermoplastics 12.00 3 475 0.202 18.000 5.400 12600 7621 740.7
16.00 3 475 0.215 24.000 7.200 9450 6096 1053.5
20.00 3 475 0.252 30.000 9.000 7560 5715 1543.2

Cast aluminium 12.00 3 380 0.168 18.000 5.400 10080 5080 493.8
16.00 3 380 0.179 24.000 7.200 7560 4064 702.3
20.00 3 380 0.210 30.000 9.000 6050 3812 1029.1

Wrought aluminium 12.00 3 380 0.097 18.000 12.000 10080 2921 631.0
Construction aluminium 16.00 3 380 0.103 24.000 16.000 7560 2337 897.4
20.00 3 380 0.121 30.000 20.000 6050 2192 1315.0

Unalloyed copper 12.00 3 284 0.072 18.000 12.000 7535 1638 353.7
16.00 3 284 0.077 24.000 16.000 5650 1310 503.0
20.00 3 284 0.091 30.000 20.000 4520 1228 736.8

Thermoplastics 12.00 3 380 0.116 18.000 12.000 10080 3505 757.2
16.00 3 380 0.124 24.000 16.000 7560 2804 1076.9
20.00 3 380 0.145 30.000 20.000 6050 2630 1577.9

Cast aluminium 12.00 3 304 0.097 18.000 12.000 8065 2337 504.8
16.00 3 304 0.103 24.000 16.000 6050 1870 718.2
20.00 3 304 0.121 30.000 20.000 4840 1753 1052.0

fraisa.com
616
