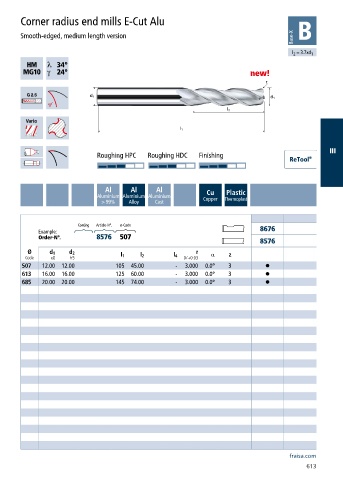

Corner radius end mills E-Cut Alu
Smooth-edged, medium length version
l = 3.7xd 1
2
34°
24° new!
III
Roughing HPC Roughing HDC Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8676
Order-N°. 8576 507
8576
new Ø d 1 d 2 l 1 l 2 l 4 r α z
Code e8 h5 0/+0.03
new 507 12.00 12.00 105 45.00 - 3.000 0.0° 3 •
new 613 16.00 16.00 125 60.00 - 3.000 0.0° 3 •
new 685 20.00 20.00 145 74.00 - 3.000 0.0° 3 •
