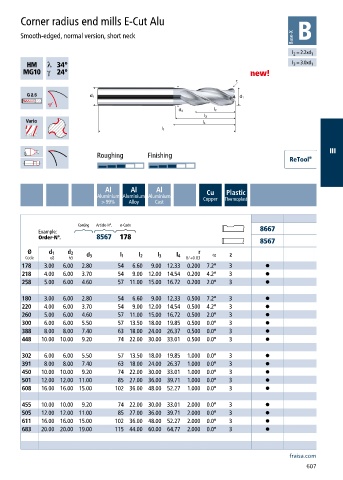

Page 609 - 21-036 APPLITEC catalogue.indb

Corner radius end mills E-Cut Alu

Smooth-edged, normal version, short neck
l = 2.2xd 1
2
34° l = 3.0xd 1
3
24° new!

III
Roughing Finishing

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example: 8667
Order-N°. 8567 178
8567
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 r α z
Code e8 h5 0/+0.03
new 178 3.00 6.00 2.80 54 6.60 9.00 12.33 0.200 7.2° 3 •
new 218 4.00 6.00 3.70 54 9.00 12.00 14.54 0.200 4.2° 3 •
new 258 5.00 6.00 4.60 57 11.00 15.00 16.72 0.200 2.0° 3 •

new 180 3.00 6.00 2.80 54 6.60 9.00 12.33 0.500 7.2° 3 •
new 220 4.00 6.00 3.70 54 9.00 12.00 14.54 0.500 4.2° 3 •
new 260 5.00 6.00 4.60 57 11.00 15.00 16.72 0.500 2.0° 3 •
new 300 6.00 6.00 5.50 57 13.50 18.00 19.85 0.500 0.0° 3 •
new 388 8.00 8.00 7.40 63 18.00 24.00 26.37 0.500 0.0° 3 •
new 448 10.00 10.00 9.20 74 22.00 30.00 33.01 0.500 0.0° 3 •

new 302 6.00 6.00 5.50 57 13.50 18.00 19.85 1.000 0.0° 3 •
new 391 8.00 8.00 7.40 63 18.00 24.00 26.37 1.000 0.0° 3 •
new 450 10.00 10.00 9.20 74 22.00 30.00 33.01 1.000 0.0° 3 •
new 501 12.00 12.00 11.00 85 27.00 36.00 39.71 1.000 0.0° 3 •
new 608 16.00 16.00 15.00 102 36.00 48.00 52.27 1.000 0.0° 3 •

new 455 10.00 10.00 9.20 74 22.00 30.00 33.01 2.000 0.0° 3 •
new 505 12.00 12.00 11.00 85 27.00 36.00 39.71 2.000 0.0° 3 •
new 611 16.00 16.00 15.00 102 36.00 48.00 52.27 2.000 0.0° 3 •
new 683 20.00 20.00 19.00 115 44.00 60.00 64.77 2.000 0.0° 3 •
