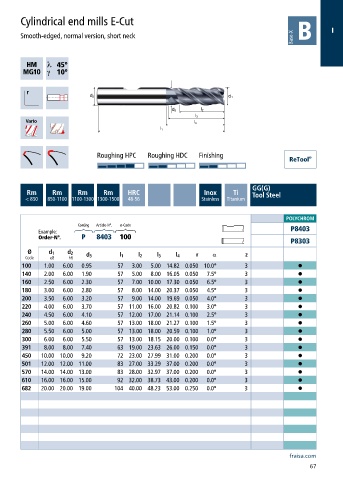

Cylindrical end mills E-Cut
I
Smooth-edged, normal version, short neck

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8403
Order-N°. P 8403 100
P8303
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
100 1.00 6.00 0.95 57 3.00 5.00 14.82 0.050 10.0° 3 •
140 2.00 6.00 1.90 57 5.00 8.00 16.05 0.050 7.5° 3 •
new 160 2.50 6.00 2.30 57 7.00 10.00 17.30 0.050 6.5° 3 •
180 3.00 6.00 2.80 57 8.00 14.00 20.37 0.050 4.5° 3 •
new 200 3.50 6.00 3.20 57 9.00 14.00 19.69 0.050 4.0° 3 •
220 4.00 6.00 3.70 57 11.00 16.00 20.82 0.100 3.0° 3 •
new 240 4.50 6.00 4.10 57 12.00 17.00 21.14 0.100 2.5° 3 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.100 1.5° 3 •
new 280 5.50 6.00 5.00 57 13.00 18.00 20.59 0.100 1.0° 3 •
300 6.00 6.00 5.50 57 13.00 18.15 20.00 0.100 0.0° 3 •
391 8.00 8.00 7.40 63 19.00 23.63 26.00 0.150 0.0° 3 •
450 10.00 10.00 9.20 72 23.00 27.99 31.00 0.200 0.0° 3 •
501 12.00 12.00 11.00 83 27.00 33.29 37.00 0.200 0.0° 3 •
570 14.00 14.00 13.00 83 28.00 32.97 37.00 0.200 0.0° 3 •
610 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 0.0° 3 •
682 20.00 20.00 19.00 104 40.00 48.23 53.00 0.250 0.0° 3 •

fraisa.com
67
