P. 803

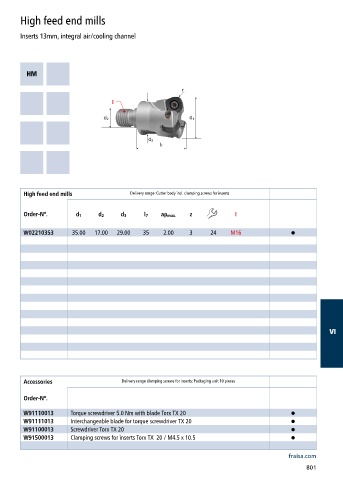

High feed end mills
Inserts 13mm, integral air/cooling channel
High feed end mills Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 7 ap max. z I
W02210353 35.00 17.00 29.00 35 2.00 3 24 M16 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W91110013 Torque screwdriver 5.0 Nm with blade Torx TX 20 •
W91111013 Interchangeable blade for torque screwdriver TX 20 •
W91100013 Screwdriver Torx TX 20 •
W91500013 Clamping screws for inserts Torx TX 20 / M4.5 x 10.5 •
fraisa.com
801
