P. 807

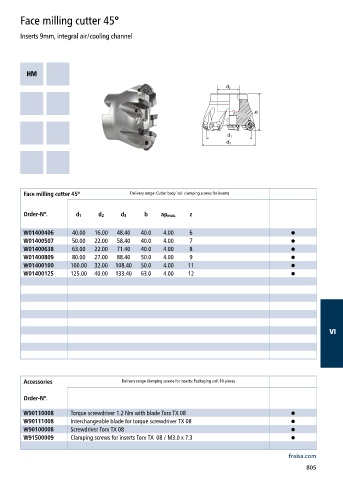

Face milling cutter 45°
Inserts 9mm, integral air/cooling channel
Face milling cutter 45° Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 b ap max. z
W01400406 40.00 16.00 48.40 40.0 4.00 6 •
W01400507 50.00 22.00 58.40 40.0 4.00 7 •
W01400638 63.00 22.00 71.40 40.0 4.00 8 •
W01400809 80.00 27.00 88.40 50.0 4.00 9 •
W01400100 100.00 32.00 108.40 50.0 4.00 11 •
W01400125 125.00 40.00 133.40 63.0 4.00 12 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110008 Torque screwdriver 1.2 Nm with blade Torx TX 08 •
W90111008 Interchangeable blade for torque screwdriver TX 08 •
W90100008 Screwdriver Torx TX 08 •
W91500009 Clamping screws for inserts Torx TX 08 / M3.0 x 7.3 •
fraisa.com
