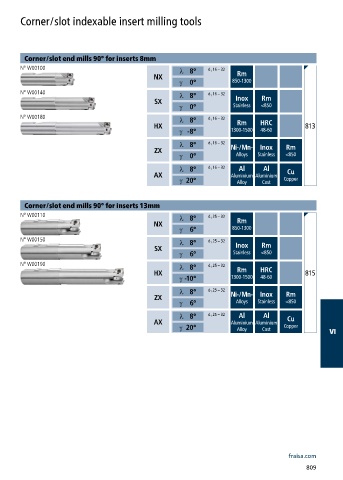

Corner/slot indexable insert milling tools

Corner/slot end mills 90° for inserts 8mm
N° W00100 λ 8° d 1 16 – 32
NX Rm
γ 0° 850-1300
N° W00140 λ 8° d 1 16 – 32
SX Inox Rm
γ 0° Stainless <850
N° W00180 λ 8° d 1 16 – 32
HX Rm HRC 813
γ -8° 1300-1500 48-60
λ 8° d 1 16 – 32
ZX Ni-/Mn- Inox Rm
γ 0° Alloys Stainless <850

λ 8° d 1 16 – 32 Al Al
AX Aluminium Aluminium Cu
γ 20° Alloy Cast Copper

Corner/slot end mills 90° for inserts 13mm
N° W00110 λ 8° d 1 25 – 32
NX Rm
γ 6° 850-1300
N° W00150 λ 8° d 1 25 – 32
SX Inox Rm
γ 6° Stainless <850
N° W00190 λ 8° d 1 25 – 32
HX Rm HRC 815
γ -10° 1300-1500 48-60
λ 8° d 1 25 – 32
ZX Ni-/Mn- Inox Rm
γ 6° Alloys Stainless <850
λ 8° d 1 25 – 32 Al Al
AX Aluminium Aluminium Cu
γ 20° Alloy Cast Copper VI
