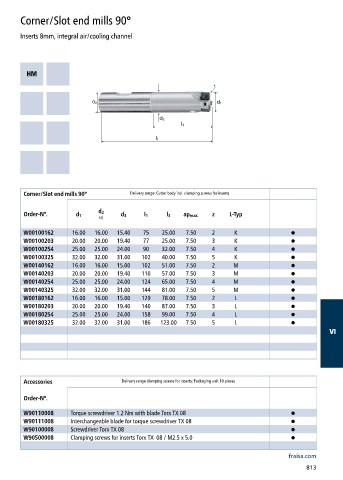

Corner/Slot end mills 90°

Inserts 8mm, integral air/cooling channel

Corner/Slot end mills 90° Delivery range: Cutter body incl. clamping screws for inserts

Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6

W00100162 16.00 16.00 15.40 75 25.00 7.50 2 K •
W00100203 20.00 20.00 19.40 77 25.00 7.50 3 K •
W00100254 25.00 25.00 24.00 90 32.00 7.50 4 K •
W00100325 32.00 32.00 31.00 102 40.00 7.50 5 K •
W00140162 16.00 16.00 15.00 102 51.00 7.50 2 M •
W00140203 20.00 20.00 19.40 110 57.00 7.50 3 M •
W00140254 25.00 25.00 24.00 124 65.00 7.50 4 M •
W00140325 32.00 32.00 31.00 144 81.00 7.50 5 M •
W00180162 16.00 16.00 15.00 129 78.00 7.50 2 L •
W00180203 20.00 20.00 19.40 140 87.00 7.50 3 L •
W00180254 25.00 25.00 24.00 158 99.00 7.50 4 L •
W00180325 32.00 32.00 31.00 186 123.00 7.50 5 L •
VI

Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.

W90110008 Torque screwdriver 1.2 Nm with blade Torx TX 08 •
W90111008 Interchangeable blade for torque screwdriver TX 08 •
W90100008 Screwdriver Torx TX 08 •
W90500008 Clamping screws for inserts Torx TX 08 / M2.5 x 5.0 •

fraisa.com
813
