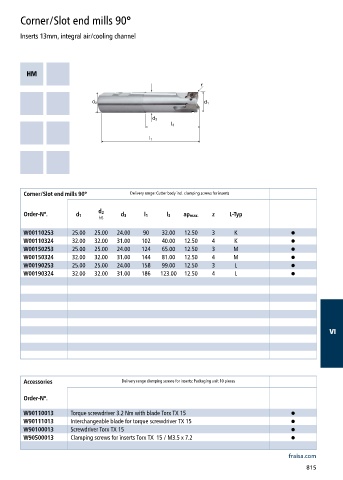

P. 817
Corner/Slot end mills 90°
Inserts 13mm, integral air/cooling channel
Corner/Slot end mills 90° Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6
W00110253 25.00 25.00 24.00 90 32.00 12.50 3 K •
W00110324 32.00 32.00 31.00 102 40.00 12.50 4 K •
W00150253 25.00 25.00 24.00 124 65.00 12.50 3 M •
W00150324 32.00 32.00 31.00 144 81.00 12.50 4 M •
W00190253 25.00 25.00 24.00 158 99.00 12.50 3 L •
W00190324 32.00 32.00 31.00 186 123.00 12.50 4 L •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110013 Torque screwdriver 3.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W90500013 Clamping screws for inserts Torx TX 15 / M3.5 x 7.2 •
fraisa.com
815
