P. 819

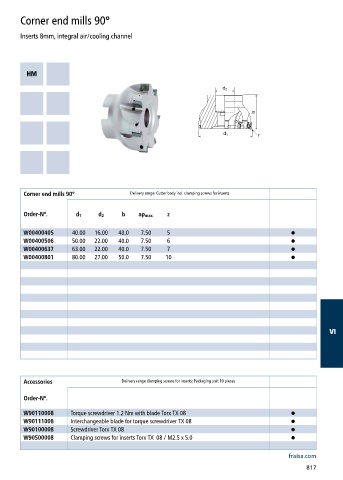

Corner end mills 90°
Inserts 8mm, integral air/cooling channel
Corner end mills 90° Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 b ap max. z
W00400405 40.00 16.00 40.0 7.50 5 •
W00400506 50.00 22.00 40.0 7.50 6 •
W00400637 63.00 22.00 40.0 7.50 7 •
W00400801 80.00 27.00 50.0 7.50 10 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110008 Torque screwdriver 1.2 Nm with blade Torx TX 08 •
W90111008 Interchangeable blade for torque screwdriver TX 08 •
W90100008 Screwdriver Torx TX 08 •
W90500008 Clamping screws for inserts Torx TX 08 / M2.5 x 5.0 •
fraisa.com
817
