P. 821

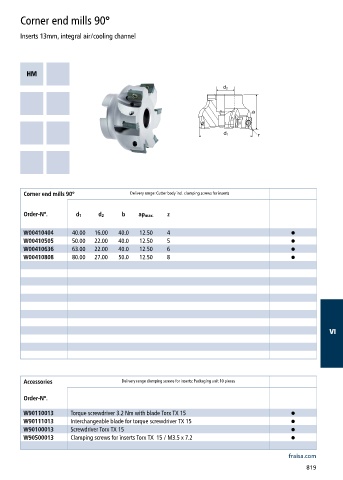

Corner end mills 90°
Inserts 13mm, integral air/cooling channel
Corner end mills 90° Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 b ap max. z
W00410404 40.00 16.00 40.0 12.50 4 •
W00410505 50.00 22.00 40.0 12.50 5 •
W00410636 63.00 22.00 40.0 12.50 6 •
W00410808 80.00 27.00 50.0 12.50 8 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110013 Torque screwdriver 3.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W90500013 Clamping screws for inserts Torx TX 15 / M3.5 x 7.2 •
fraisa.com
819
