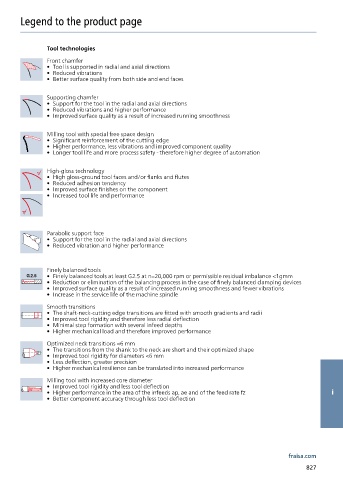

Legend to the product page

Tool technologies
Front chamfer
• Tool is supported in radial and axial directions
• Reduced vibrations
• Better surface quality from both side and end faces

Supporting chamfer
• Support for the tool in the radial and axial directions
• Reduced vibrations and higher performance
• Improved surface quality as a result of increased running smoothness

Milling tool with special free space design
• Significant reinforcement of the cutting edge
• Higher performance, less vibrations and improved component quality
• Longer tool life and more process safety - therefore higher degree of automation

High-gloss technology
• High gloss-ground tool faces and/or flanks and flutes
• Reduced adhesion tendency
• Improved surface finishes on the component
• Increased tool life and performance

Parabolic support face
• Support for the tool in the radial and axial directions
• Reduced vibration and higher performance

Finely balanced tools
• Finely balanced tools at least G2.5 at n=20,000 rpm or permissible residual imbalance <1gmm
• Reduction or elimination of the balancing process in the case of finely balanced clamping devices
• Improved surface quality as a result of increased running smoothness and fewer vibrations
• Increase in the service life of the machine spindle
Smooth transitions
• The shaft-neck-cutting edge transitions are fitted with smooth gradients and radii
• Improved tool rigidity and therefore less radial deflection
• Minimal step formation with several infeed depths
• Higher mechanical load and therefore improved performance
Optimized neck transitions <6 mm
• The transitions from the shank to the neck are short and their optimized shape
• Improved tool rigidity for diameters <6 mm
• Less deflection, greater precision
• Higher mechanical resilience can be translated into increased performance

Milling tool with increased core diameter
• Improved tool rigidity and less tool deflection
• Higher performance in the area of the infeeds ap, ae and of the feed rate fz i
• Better component accuracy through less tool deflection
