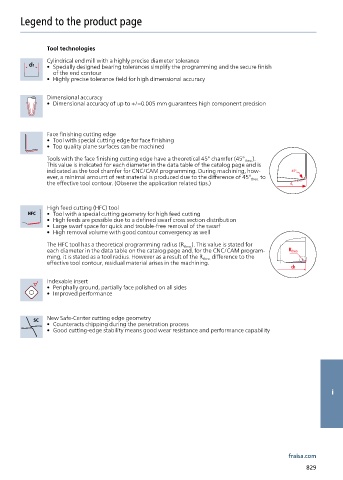

Legend to the product page

Tool technologies
Cylindrical end mill with a highly precise diameter tolerance
• Specially designed bearing tolerances simplify the programming and the secure finish
of the end contour
• Highly precise tolerance field for high dimensional accuracy

Dimensional accuracy
• Dimensional accuracy of up to +/−0.005 mm guarantees high component precision

Face finishing cutting edge
• Tool with special cutting edge for face finishing
• Top quality plane surfaces can be machined
Tools with the face finishing cutting edge have a theoretical 45° chamfer (45° theo. ).
This value is indicated for each diameter in the data table of the catalog page and is
indicated as the tool chamfer for CNC/CAM programming. During machining, how- 45° theo.
ever, a minimal amount of rest material is produced due to the difference of 45° theo. to
the effective tool contour. (Observe the application related tips.) d 1

High feed cutting (HFC) tool
• Tool with a special cutting geometry for high feed cutting
• High feeds are possible due to a defined swarf cross section distribution
• Large swarf space for quick and trouble-free removal of the swarf
• High removal volume with good contour convergency as well
The HFC tool has a theoretical programming radius (R theo. ). This value is stated for
each diameter in the data table on the catalog page and, for the CNC/CAM program-
ming, it is stated as a tool radius. However as a result of the R theo. difference to the
effective tool contour, residual material arises in the machining.

Indexable insert
• Periphally ground, partially face polished on all sides
• Improved performance

New Safe-Center cutting edge geometry
• Counteracts chipping during the penetration process
• Good cutting-edge stability means good wear resistance and performance capability
