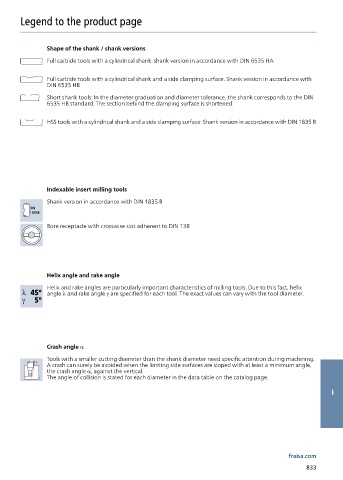

Legend to the product page

Shape of the shank / shank versions
Full carbide tools with a cylindrical shank: shank version in accordance with DIN 6535 HA

Full carbide tools with a cylindrical shank and a side clamping surface. Shank version in accordance with
DIN 6535 HB
Short shank tools: In the diameter graduation and diameter tolerance, the shank corresponds to the DIN
6535 HB standard. The section behind the clamping surface is shortened.

HSS tools with a cylindrical shank and a side clamping surface: Shank version in accordance with DIN 1835 B

Indexable insert milling tools
Shank version in accordance with DIN 1835 B

Bore receptacle with crosswise slot adherent to DIN 138

Helix angle and rake angle

Helix and rake angles are particularly important characteristics of milling tools. Due to this fact, helix
l 45° angle l and rake angle g are specified for each tool. The exact values can vary with the tool diameter.
g 5°

Crash angle α
Tools with a smaller cutting diameter than the shank diameter need specific attention during machining.
A crash can surely be avoided when the limiting side surfaces are sloped with at least a minimum angle,
the crash angle α, against the vertical.
The angle of collision is stated for each diameter in the data table on the catalog page.
