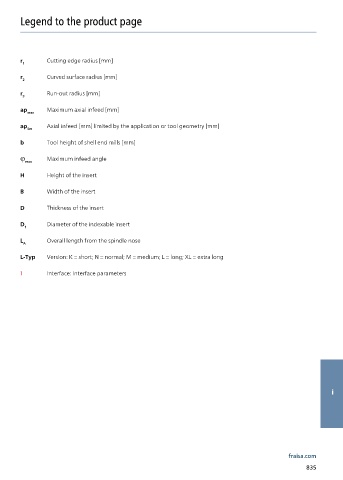

Legend to the product page

r Cutting edge radius [mm]
1
r 2 Curved surface radius [mm]

r Run-out radius [mm]
3
ap Maximum axial infeed [mm]
max
ap lim Axial infeed [mm] limited by the application or tool geometry [mm]

b Tool height of shell end mills [mm]
j Maximum infeed angle
max
H Height of the insert

B Width of the insert

D Thickness of the insert
D Diameter of the indexable insert
1
L A Overall length from the spindle nose

L-Typ Version: K = short; N = normal; M = medium; L = long; XL = extra long

I Interface: Interface parameters
