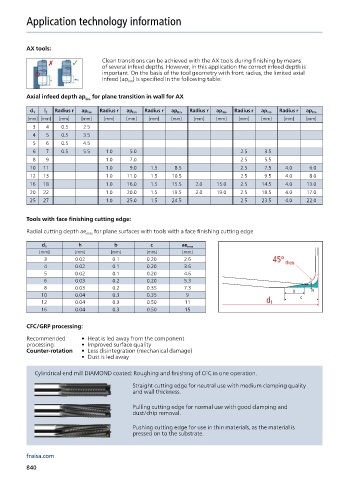

Application technology information

AX tools:
Clean transitions can be achieved with the AX tools during finishing by means
of several infeed depths. However, in this application the correct infeed depth is
important. On the basis of the tool geometry with front radius, the limited axial
infeed (ap lim ) is specified in the following table:

Axial infeed depth ap for plane transition in wall for AX
lim
d 1 l 2 Radius r ap lim Radius r ap lim Radius r ap lim Radius r ap lim Radius r ap lim Radius r ap lim
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
3 4 0.5 2.5
4 5 0.5 3.5
5 6 0.5 4.5
6 7 0.5 5.5 1.0 5.0 2.5 3.5
8 9 1.0 7.0 2.5 5.5
10 11 1.0 9.0 1.5 8.5 2.5 7.5 4.0 6.0
12 13 1.0 11.0 1.5 10.5 2.5 9.5 4.0 8.0
16 18 1.0 16.0 1.5 15.5 2.0 15.0 2.5 14.5 4.0 13.0
20 22 1.0 20.0 1.5 19.5 2.0 19.0 2.5 18.5 4.0 17.0
25 27 1.0 25.0 1.5 24.5 2.5 23.5 4.0 22.0

Tools with face finishing cutting edge:

Radial cutting depth ae max for plane surfaces with tools with a face finishing cutting edge
h b c
d 1 ae max
[mm] [mm] [mm] [mm] [mm]
3 0.02 0.1 0.20 2.6
4 0.02 0.1 0.20 3.6
5 0.02 0.1 0.20 4.6
6 0.03 0.2 0.20 5.3
8 0.03 0.2 0.35 7.3
10 0.04 0.3 0.35 9
12 0.04 0.3 0.50 11
16 0.04 0.3 0.50 15

CFC/GRP processing:
Recommended • Heat is led away from the component
processing: • Improved surface quality
Counter-rotation • Less disintegration (mechanical damage)
• Dust is led away
Cylindrical end mill DIAMOND coated: Roughing and finishing of CFC in one operation.
Straight cutting edge for neutral use with medium clamping quality
and wall thickness.
Pulling cutting edge for normal use with good clamping and
dust/chip removal.

Pushing cutting edge for use in thin materials, as the material is
pressed on to the substrate.
