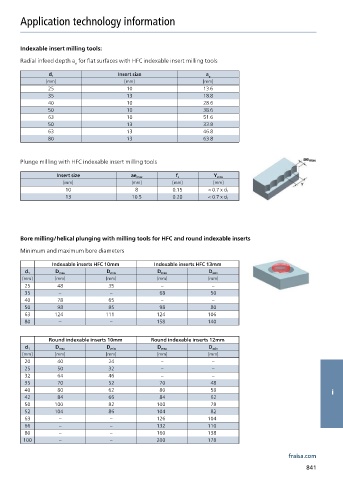

Application technology information

Indexable insert milling tools:
Radial infeed depth a for flat surfaces with HFC indexable insert milling tools
e
Insert size a
d 1
e
[mm] [mm] [mm]
25 10 13.6
35 13 18.8
40 10 28.6
50 10 38.6
63 10 51.6
50 13 33.8
63 13 46.8
80 13 63.8

Plunge milling with HFC indexable insert milling tools
Insert size ae max f z Y max
[mm] [mm] [mm] [mm]
10 8 0.15 < 0.7 x d 1
13 10.5 0.20 < 0.7 x d 1

Bore milling/helical plunging with milling tools for HFC and round indexable inserts
Minimum and maximum bore diameters
Indexable inserts HFC 10mm Indexable inserts HFC 13mm
d 1 D max D min D max D min
[mm] [mm] [mm] [mm] [mm]
25 48 35 – –
35 – – 68 50
40 78 65 – –
50 98 85 98 80
63 124 111 124 106
80 – – 158 140

Round indexable inserts 10mm Round indexable inserts 12mm
d 1 D max D min D max D min
[mm] [mm] [mm] [mm] [mm]
20 40 24 – –
25 50 32 – –
32 64 46 – –
35 70 52 70 48
40 80 62 80 58 i
42 84 66 84 62
50 100 82 100 78
52 104 86 104 82
63 – – 126 104
66 – – 132 110
80 – – 160 138
100 – – 200 178
