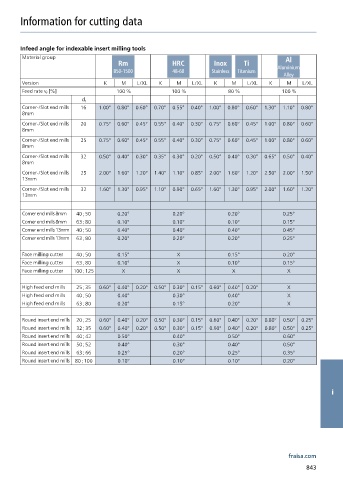

Information for cutting data

Infeed angle for indexable insert milling tools
Material group Al
Rm HRC Inox Ti
Aluminium
850-1500 48-60 Stainless Titanium
Alloy
Version K M L/XL K M L/XL K M L/XL K M L/XL
Feed rate v f [%] 100 % 100 % 80 % 100 %
d 1
Corner-/Slot end mills 16 1.00° 0.80° 0.60° 0.70° 0.55° 0.40° 1.00° 0.80° 0.60° 1.30° 1.10° 0.80°
8mm
Corner-/Slot end mills 20 0.75° 0.60° 0.45° 0.55° 0.40° 0.30° 0.75° 0.60° 0.45° 1.00° 0.80° 0.60°
8mm
Corner-/Slot end mills 25 0.75° 0.60° 0.45° 0.55° 0.40° 0.30° 0.75° 0.60° 0.45° 1.00° 0.80° 0.60°
8mm
Corner-/Slot end mills 32 0.50° 0.40° 0.30° 0.35° 0.30° 0.20° 0.50° 0.40° 0.30° 0.65° 0.50° 0.40°
8mm
Corner-/Slot end mills 25 2.00° 1.60° 1.20° 1.40° 1.10° 0.85° 2.00° 1.60° 1.20° 2.50° 2.00° 1.50°
13mm
Corner-/Slot end mills 32 1.60° 1.30° 0.95° 1.10° 0.90° 0.65° 1.60° 1.30° 0.95° 2.00° 1.60° 1.20°
13mm

Corner end mills 8mm 40 ; 50 0.20° 0.20° 0.20° 0.25°
Corner end mills 8mm 63 ; 80 0.10° 0.10° 0.10° 0.15°
Corner end mills 13mm 40 ; 50 0.40° 0.40° 0.40° 0.45°
Corner end mills 13mm 63 ; 80 0.20° 0.20° 0.20° 0.25°

Face milling cutter 40 ; 50 0.15° X 0.15° 0.20°
Face milling cutter 63 ; 80 0.10° X 0.10° 0.15°
Face milling cutter 100 ; 125 X X X X
High feed end mills 25 ; 35 0.60° 0.40° 0.20° 0.50° 0.30° 0.15° 0.60° 0.40° 0.20° X
High feed end mills 40 ; 50 0.40° 0.30° 0.40° X
High feed end mills 63 ; 80 0.20° 0.15° 0.20° X

Round insert end mills 20 ; 25 0.60° 0.40° 0.20° 0.50° 0.30° 0.15° 0.60° 0.40° 0.20° 0.80° 0.50° 0.25°
Round insert end mills 32 ; 35 0.60° 0.40° 0.20° 0.50° 0.30° 0.15° 0.60° 0.40° 0.20° 0.80° 0.50° 0.25°
Round insert end mills 40 ; 42 0.50° 0.40° 0.50° 0.60°
Round insert end mills 50 ; 52 0.40° 0.30° 0.40° 0.50°
Round insert end mills 63 ; 66 0.25° 0.20° 0.25° 0.35°
Round insert end mills 80 ; 100 0.10° 0.10° 0.10° 0.20°
