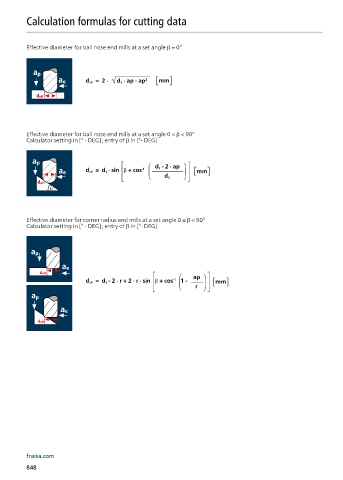

Calculation formulas for cutting data
Effective diameter for ball nose end mills at a set angle β = 0°
d eff = 2 · d √ 1 · ap - ap 2 mm
Effective diameter for ball nose end mills at a set angle 0 < β < 90°
Calculator setting in [° - DEG] ; entry of β in [°- DEG]
d 1 - 2 · ap
d eff = d 1 · sin β + cos -1 mm
d 1
Effective diameter for corner radius end mills at a set angle 0 ≤ β < 90°
Calculator setting in [° - DEG] ; entry of β in [°- DEG]
ap
-1
d eff = d 1 - 2 · r + 2 · r · sin β + cos 1 - mm
r
