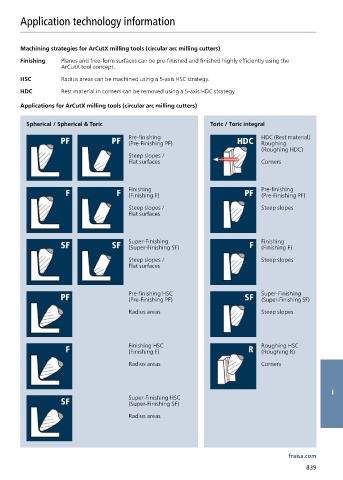

Application technology information

Machining strategies for ArCutX milling tools (circular arc milling cutters)
Finishing Planes and free-form surfaces can be pre-finished and finished highly efficiently using the
ArCutX tool concept.
HSC Radius areas can be machined using a 5-axis HSC strategy.
HDC Rest material in corners can be removed using a 5-axis HDC strategy.

Applications for ArCutX milling tools (circular arc milling cutters)

Spherical / Spherical & Toric Toric / Toric integral
Pre-finishing HDC (Rest material)
(Pre-Finishing PF) Roughing
(Roughing HDC)
Steep slopes /
Flat surfaces Corners

Finishing Pre-finishing
(Finishing F) (Pre-Finishing PF)
Steep slopes / Steep slopes
Flat surfaces

Super-Finishing Finishing
(Super-Finishing SF) (Finishing F)
Steep slopes / Steep slopes
Flat surfaces

Pre-finishing HSC Super-Finishing
(Pre-Finishing PF) (Super-Finishing SF)
Radius areas Steep slopes

Finishing HSC Roughing HSC
(Finishing F) (Roughing R)
Radius areas Corners

i
Super-Finishing HSC
(Super-Finishing SF)
Radius areas
