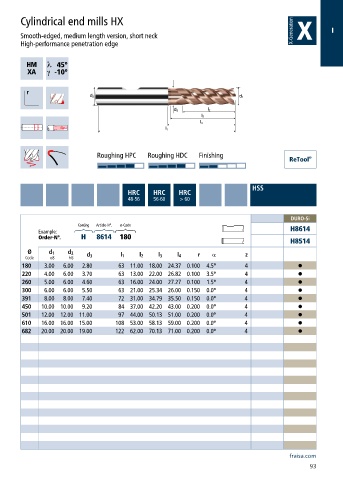

Cylindrical end mills HX
I
Smooth-edged, medium length version, short neck
High-performance penetration edge

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

HSS
HRC HRC HRC
48-56 56-60 > 60

DURO-Si
Coating Article-N°. ø-Code
Example: H8614
Order-N°. H 8614 180
H8514
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
180 3.00 6.00 2.80 63 11.00 18.00 24.37 0.100 4.5° 4 •
220 4.00 6.00 3.70 63 13.00 22.00 26.82 0.100 3.5° 4 •
260 5.00 6.00 4.60 63 16.00 24.00 27.27 0.100 1.5° 4 •
300 6.00 6.00 5.50 63 21.00 25.34 26.00 0.150 0.0° 4 •
391 8.00 8.00 7.40 72 31.00 34.79 35.50 0.150 0.0° 4 •
450 10.00 10.00 9.20 84 37.00 42.20 43.00 0.200 0.0° 4 •
501 12.00 12.00 11.00 97 44.00 50.13 51.00 0.200 0.0° 4 •
610 16.00 16.00 15.00 108 53.00 58.13 59.00 0.200 0.0° 4 •
682 20.00 20.00 19.00 122 62.00 70.13 71.00 0.200 0.0° 4 •
