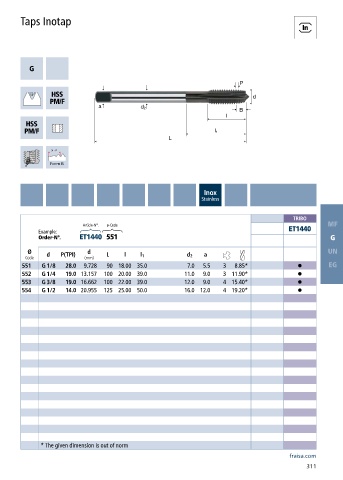

Taps Inotap
Inox
Stainless
TRIBO
Article-N°. ø-Code MF
Example: ET1440
Order-N°. ET1440 551 G
Ø d UN
Code d P(TPI) (mm) L l l 1 d 2 a
551 G 1/8 28.0 9.728 90 18.00 35.0 7.0 5.5 3 8.85* • EG
552 G 1/4 19.0 13.157 100 20.00 39.0 11.0 9.0 3 11.90* •
553 G 3/8 19.0 16.662 100 22.00 39.0 12.0 9.0 4 15.40* •
554 G 1/2 14.0 20.955 125 25.00 50.0 16.0 12.0 4 19.20* •
* The given dimension is out of norm
